Pros and Cons of Piston-Actuated Diaphragm Pumps in Mining

Updated: Jan 10

Maintenance is a word that sometimes takes on an “it can wait until it is scheduled” meaning. It is like a spare tyre in a car—never appreciated until it is needed. However, in mining, any slight interruption or even minor disruption to a harmonic production process can be the beginning of a potential costly death spiral to overall productivity. Dormant pumps mean valuable capital that was spent is not earning back its return on investment

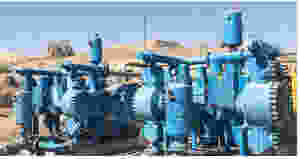

Piston-actuated diaphragm pump in an aboveground outside service in a copper mine
Aboveground outside service in a copper mine

(ROI). Whether above or below ground, there is a need for a robust, long-lasting and a volumetrically efficient workhorse.

Constant pump adjustments, frequent parts changes due to poor duty life, fickle and high-maintenance problems are signs of a “pump in a box” approach to a severe duty application that seldom works in a hot, dry, long life cycle maintenance program or unforgiving environment. Pumps in this kind of service are usually forgotten unless there is a problem. Then they suddenly become centre stage because many, if not all, processes come to a standstill.

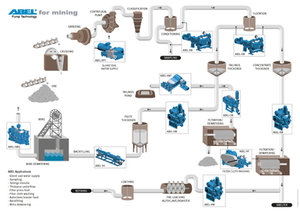

The following are some advantages and disadvantages of a positive displacement piston-actuated diaphragm pump for both maintenance and operation:

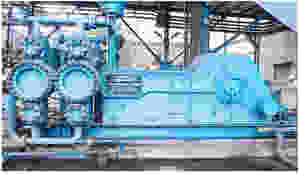

Pumping mine tailings outside, above ground.
Pumping mine tailings outside, above ground.

Benefits of Piston-Actuated Diaphragm Pumps

  • The ability to have multiple diaphragms that split and share the hydraulic load

  • High volumetric pumping efficiency by nature

  • Pump fluids and slurries with a high temperature

  • Pump fluids and slurries with high solids content and suspended particulates

  • Pump at relatively high pressures

  • Work in either single- or double-acting design

  • Stroke adjustment for maximum efficiency, slow pump speed and low to no vibration

  • Low horsepower requirements

  • No seal problems because the diaphragm is the seal (technically hermetically sealed)

  • Most have integral pressure relief systems

  • The diaphragm is positioned to the side of the product being pumped and, therefore, is passive pumping

  • Can last for many years with less overall maintenance

  • The option of ball check valves, cone valves or flapper valves depending on the application characteristics

Cons of Piston-Actuated Diaphragm Pumps

  • Higher initial cost

  • Sometimes take up more space than other pump types. (This may be important in a constricted environment.)

  • Pump size needs to be increased if the pressure goes up

  • Higher average cost of spare parts

  • Longer production delivery times in some cases

  • Diaphragm pumps are not historically run in parallel or tandem

  • The piston-actuated diaphragm pump has earned its place in the pump pantheon over the last 40 years of service, but not as an off-the-shelf pump. It has become even less of a niche or custom pump these days as the requirements are ever-changing.

At its best, this kind of pump can earn back the capital investment in a short time due to the low maintenance, repair time, heavy-duty design and energy efficiency. The lack of packing, a mechanical seal, oilers or seal flush plans can make up for the initial higher cost. The diaphragm pump is efficient and often reliable—it can be a set it and forget it proposition.

Article and images courtesy of ABEL Pumps LP
